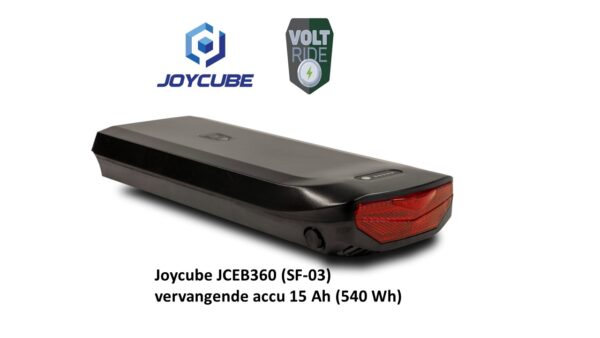

Joycube JCEB360 (SF-03) replacement battery 15 Ah (540Wh)

Joycube JCEB360 (SF-03) high-quality replacement battery

Fischer Phylion SF-03 / Joycube JCEB360 e-bike battery – 36V 15Ah 540Wh


Fischer Phylion SF-03 / Joycube JCEB360 e-bike battery – 36V 15Ah 540Wh

Q: Is this battery suitable for my Fischer SF-03 (JCEB360)?

This battery is suitable for bikes with the JCEB360 / SF-03 version with standard BMS. Check if your current battery has a smart BMS, as this version is not suitable for that.

Q: What is the difference between standard BMS and smart BMS?

A standard BMS regulates the battery’s operation (such as voltage and temperature).A smart BMS also communicates with the bike (e.g., battery percentage and range).Does your bike need a smart BMS? Then choose an original version with smart BMS. Sometimes a bike is delivered with a smart battery for the manufacturer to read the usage history (for warranty claims), but the bike itself does not support the smart BMS, so the battery actually works just like a standard BMS.

Q: Does this battery always fit in my luggage rack?

Not always. The original battery sometimes has recesses (slots) on the top where the luggage rack fits.This replacement battery does not have these recesses. Does your rack depend on them? Then the battery may not fit or click into place properly.

Q: Can I keep using my current charger?

No, this battery has a different connection. Therefore, a new, matching charger is included as standard, so you can charge safely right away.

Q: What is the advantage of this 540Wh battery?

With 15Ah (540Wh) you have more range than with many original versions (such as 522Wh). This means you can cycle longer and need to charge less often.

Original price was: €379,00.Current price is: €279,00.

33 in stock

Up to 70% more range (15Ah, 540Wh)

Smart choice thanks to great value for money

Battery built to custom specifications

Incl. free charger

Pay safely afterwards with Billink!

Product specifications

Specification	Description
Type	Li-ion
Model	JCEB360/ SF-03
Brand	Volt Ride
Version	Replacement battery
Series	SF-03
Replaces	JCEB360/ SF-03 with 8.8, 11 & 14.5 Ah
Voltage & capacity	36V, 15Ah (540 Wh)
Cell type	Cylindrical Lishen SS series
BMS	Standard BMS
Housing	Splash-proof
Connectors	5.5×2.1 DC
Weight	approx. 3.3 kg
Dimensions	375 × 150 × 64 mm
Condition	New, factory fresh
Warranty	24 months

Fischer E-bike battery for Phylion SF-03 / Joycube JCEB360 replacement

This Fischer Phylion SF-03 (Joycube JCEB360) replacement battery (15Ah, 540Wh) is a high-quality & reliable solution for Fischer e-bikes equipped with the original SF-03/ JCEB360 with standard BMS. Ideal if you are looking for a new battery with more capacity and modern battery technology. The battery is built with Lishen SS series cylindrical cells, known for their stability, durability, and consistent performance. With a capacity of 15Ah (540Wh), this version also offers more range than the original 8.8, 11 & 14.5Ah variants. Additionally, this replacement battery comes standard with a new, matching charger, so you can charge safely and without issues immediately. Key Benefits

Lishen SS series battery cells – high quality and longer lifespan
15Ah (540Wh) – more range than standard versions
Completely new battery – no refurbishment or used parts
Includes new charger – always safe and compatible charging
Available immediately – get back on the road quickly
2 year warranty

Standard BMS – Smart BMS This battery is equipped with a standard BMS (Battery Management System). Standard BMS → suitable for most Fischer e-bikes, regulates voltage and temperature (protection), among other things Smart BMS → communicates with the bike (e.g. battery percentage and range). Smart BMS only offers advantages if the bike’s software is designed (prepared) for it.

Alternative product

This replacement battery has no alternative other than the original battery from Phylion (Joycube).

If a smart BMS is desired/necessary, only the original JCEB360/ SF-03 with smart BMS will fit.

Frequently Asked Questions

This battery is suitable for bikes with the JCEB360 / SF-03 version with standard BMS. Check if your current battery has a smart BMS, as this version is not suitable for that.

A standard BMS regulates the battery’s operation (such as voltage and temperature).
A smart BMS also communicates with the bike (e.g., battery percentage and range).
Does your bike need a smart BMS? Then choose an original version with smart BMS.

Sometimes a bike is delivered with a smart battery for the manufacturer to read the usage history (for warranty claims), but the bike itself does not support the smart BMS, so the battery actually works just like a standard BMS.

Not always. The original battery sometimes has recesses (slots) on the top where the luggage rack fits.
This replacement battery does not have these recesses. Does your rack depend on them? Then the battery may not fit or click into place properly.

No, this battery has a different connection. Therefore, a new, matching charger is included as standard, so you can charge safely right away.

With 15Ah (540Wh) you have more range than with many original versions (such as 522Wh). This means you can cycle longer and need to charge less often.

Suitable for

This battery with standard BMS is suitable for various Fischer models including:

Fischer ECU 1401
Fischer ECU 1501
Fischer ECU 1502
Fischer ECU 1503
Fischer ECU 1601
Fischer ECU 1602
Fischer ECU 1603
Fischer ECU 1703
Fischer ECU 1800
Fischer ECU 1801
Fischer ECU 1802
Fischer ECU 1803
Fischer ER 1704
Fischer ER 1804
Fischer ETD 1401
Fischer ETD 1402
Fischer ETD 1612
Fischer ETH 1401
Fischer ETH 1402
Fischer ETH 1612

Tips for longer battery life

Proper use of the battery is crucial for its lifespan and performance. The following principles are important:

Keep the battery in good condition by using it regularly (charging and discharging).
The battery performs best at a temperature of 25 – 30 degrees Celsius, but stays in best condition at lower temperatures. Preferably store the battery in a cool, dry environment when not in use.
Charge an empty battery immediately to prevent a deep discharge situation where the battery voltage drops below the level at which the battery can still register that the charger is connected.

For a more detailed manual on battery management and use, click HERE:
