Phylion Joycube SF-06 (JCEB360) frame battery with smart BMS for RAP, Puch, Prophete, Keiler, Fischer etc., among others. NEW STOCK!

Phylion Joycube SF-06 (JCEB360) frame battery with smart BMS for RAP, Puch, Prophete, Keiler, Fischer etc., among others. NEW STOCK! is beschikbaar bij RAP elektrische fietsen.

Verbeter je rit met de Phylion SF-06 fietsaccu, ontworpen voor diverse merken.

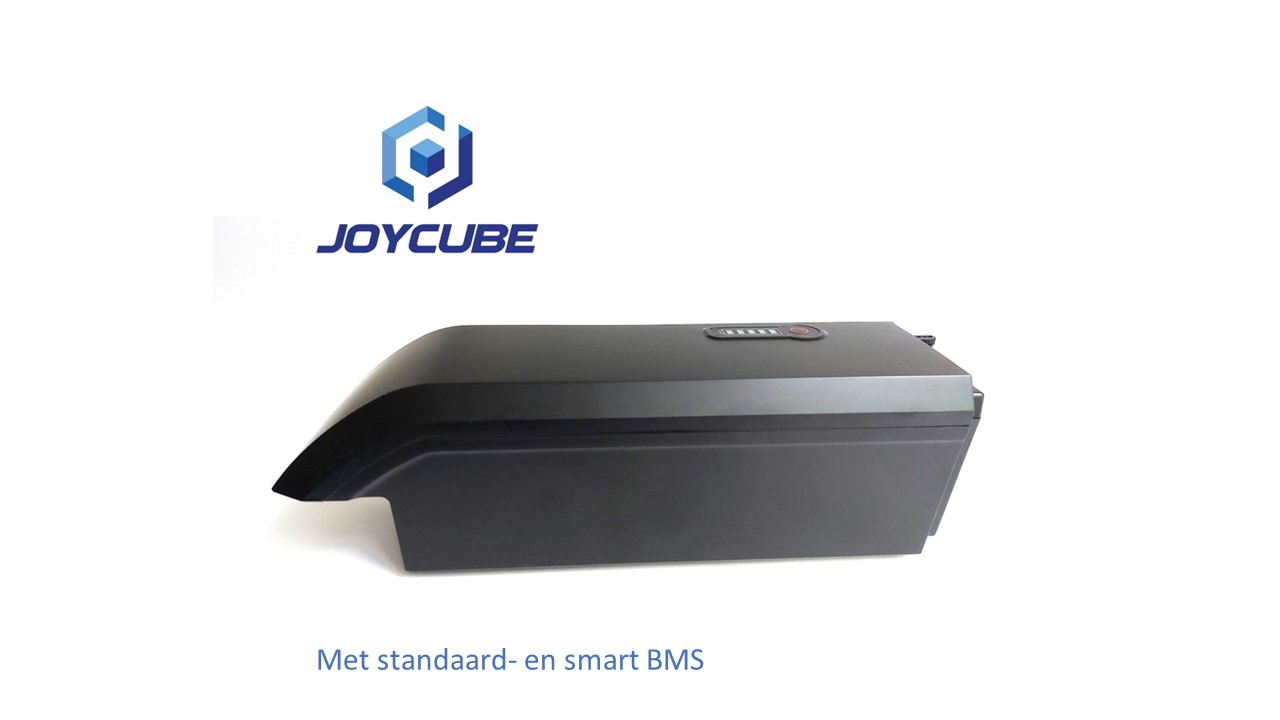

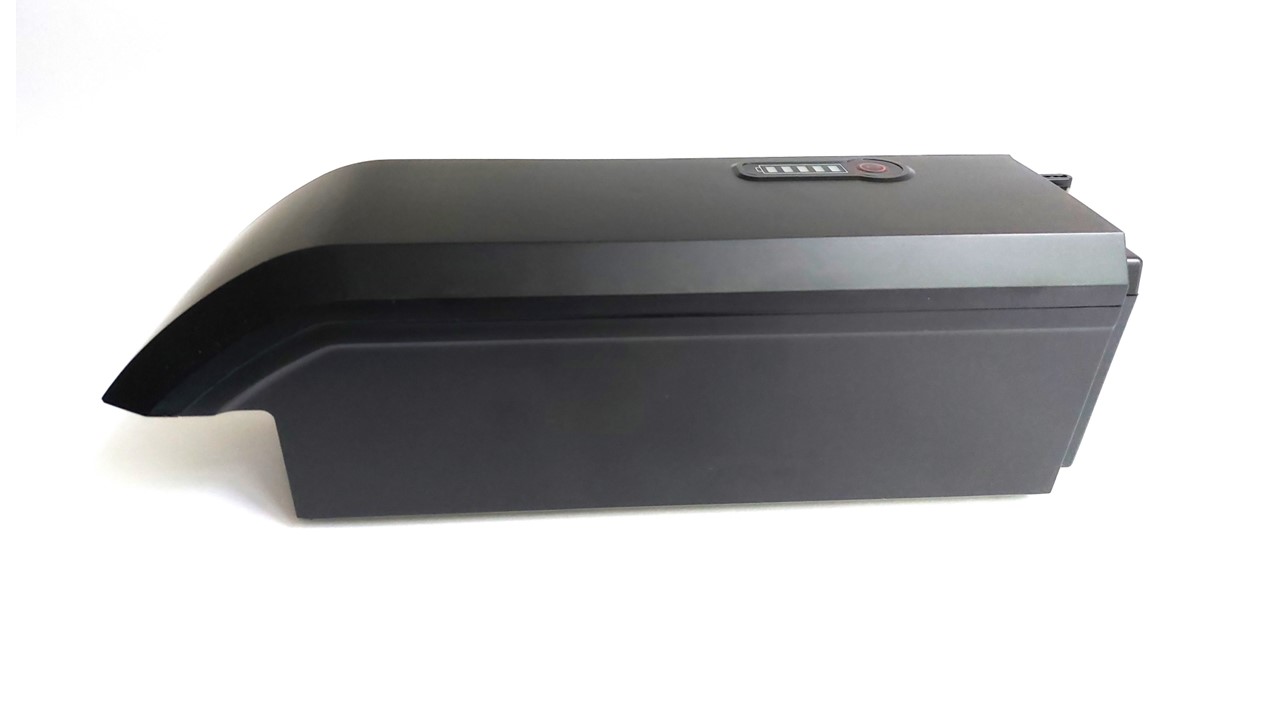

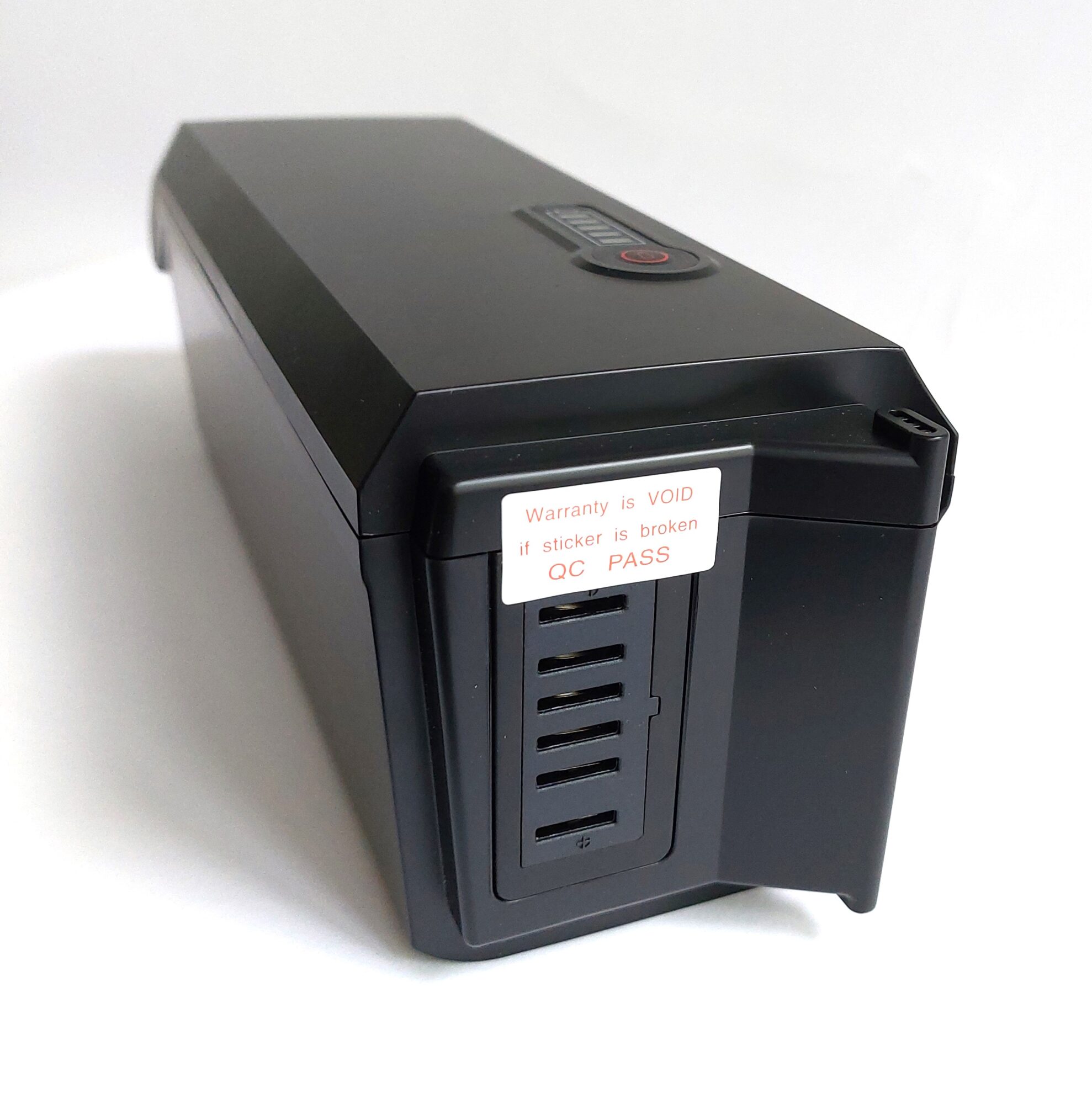

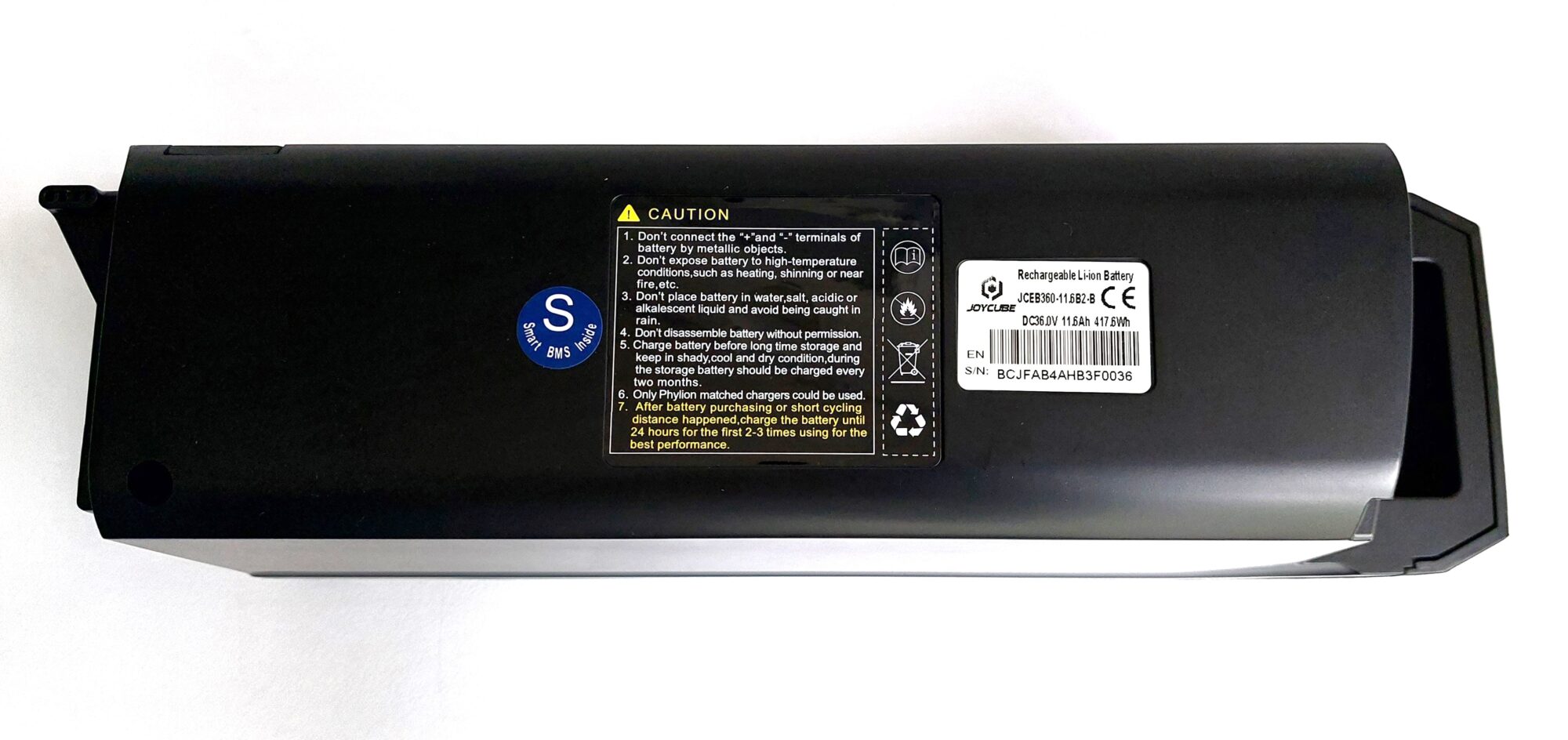

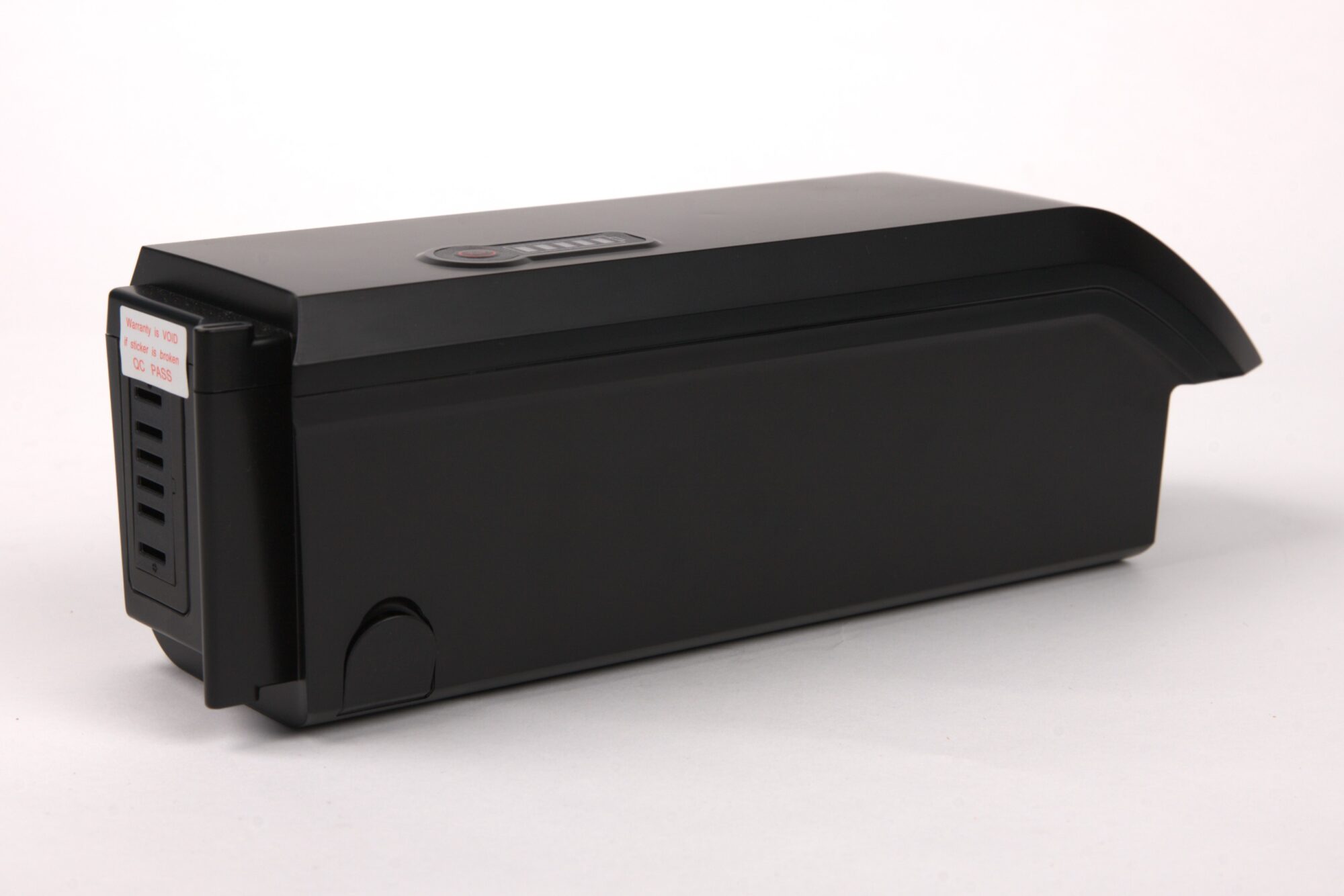

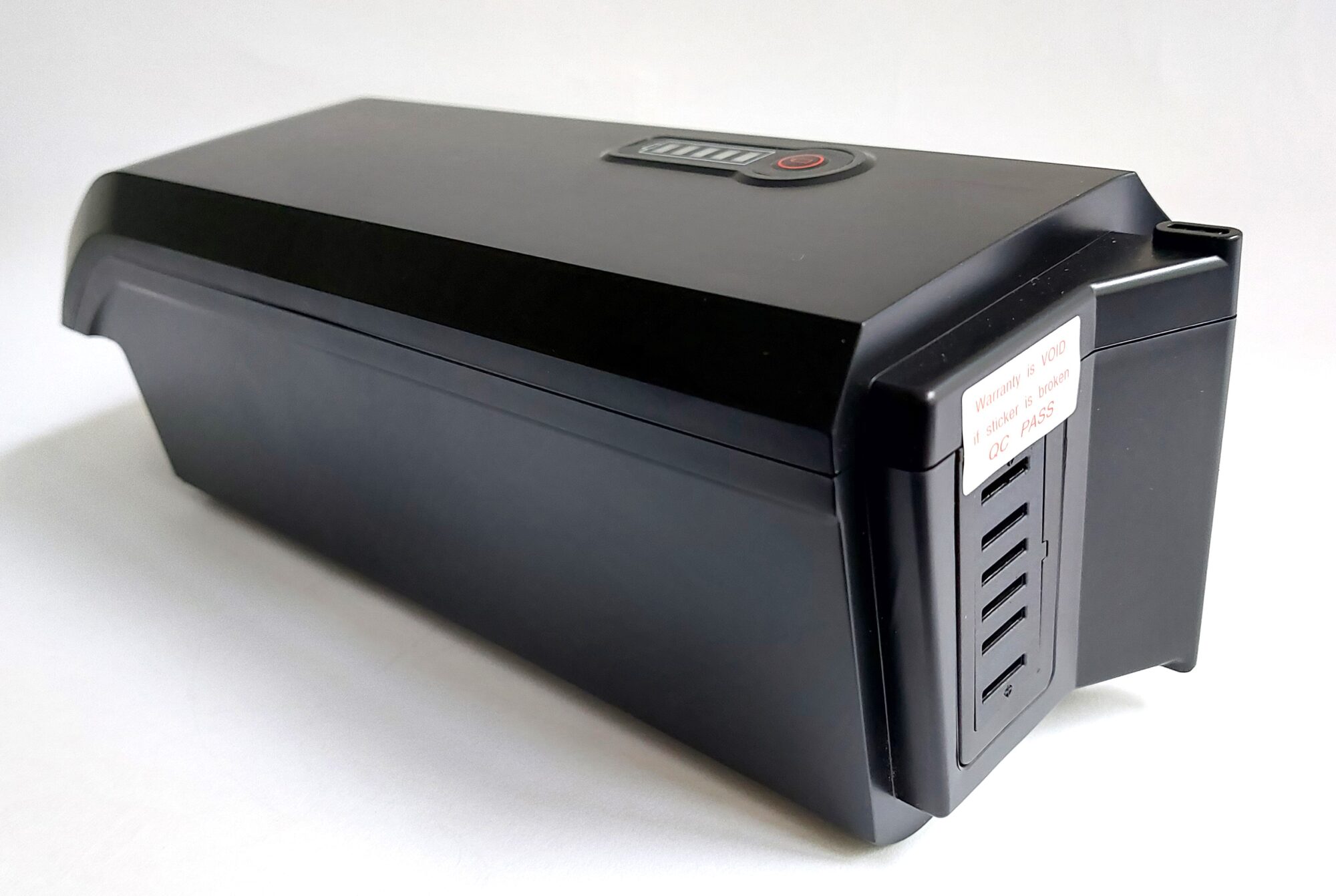

Original Phylion SF-06 (JCEB360-11.6) 36 V bicycle battery from the Joycube series with 5-pole round charging plug. The battery is equipped with a smart BMS (battery management system) and has a capacity of 418 Wh (36V, 11.6 Ah).

Beware: this model also comes with larger housing (SF-06S) as well as also in 48-volt version. Battery High-quality and reliable Li-ION bicycle battery from Phylion with round 5-pin plug connector for charging. This model features the smart BMS but also comes with standard BMS. Click here for the available models. Is the battery suitable for my bike? Go through the 4 steps below to check if this battery is suitable for your electric bike:

1. Construction form: this model is also available in a variant which is a few cm longer and is then called SF-06S. Usually these are higher capacity batteries (14 Ah and above). For the SF-06S, you will need a different dock.
2. Voltage: the current battery, like the new battery, should be 36-volt type.
3. Battery Management System (BMS): the battery to be replaced has smart BMS or standard BMS. If in doubt about the usefulness or necessity of smart BMS, read the information under the button below.
4. Charging plug connection: the new battery has a round, 5-pole charging socket for use with the charger with a round 5-pole plastic plug. The output voltage of the charger should be 42 volts for proper battery charging.

More detailed explanation of these 4 steps :

Live demonstration and right of return Any questions? Then contact us (Whatsapp via this page, by email or phone). Before purchase verify that the battery fits and works on your bike? Make an appointment for a live demonstration at our office. Ordered battery online and not satisfied? Return the battery within 14 days and get your money back (see terms and conditions). Matching charger, battery slide and battery lock: Normally, the charger of the current battery will also work on the new battery (provided it has the same specifications). Still need a replacement or extra battery charger order it here . Using and charging the battery Proper use of the battery is critical to its life and performance. The following principles are important here:

• Keep the battery in condition by using it regularly (charging and discharging).
• The battery performs best at a temperature of 25 – 30 degrees Celsius, but remains in best condition at lower temperatures. Store the battery pack preferably a in cool, dry environment when not in use.
• Charge a dead battery immediately to avoid a deep discharge situation where the battery voltage drops below the level where the battery can still register that the charger is connected.

For a more comprehensive guide on how to manage and use the battery, click the button below:   GENERAL PRODUCT INFORMATION: Item number: 5113-S Model Number: JCEB360-11.6 Manufacturer number: CB05100286 EAN: 9508418897324 Warranty: 24 months Application: Electric bicycle with 36 Volt electric system Brand: Joycube (Phylion) PRODUCT SPECIFICATIONS: Type: Li-ION Model:SF-06 Battery management: Phylion smart BMS Output voltage: 36 V Capacity: 418 WH (36V – 11.6 Ah) Length: 295 mm Width: 85 mm Height: 95 mm Weight: 2.9 kg Condition: New Pre-charged: Yes, partially Optional: battery carriage & lock, charger DELIVERY: – Free shipping – Credit card and post-payment options available
